Mechanical Ram that extends more than 40-inches to move and hold working loads. Utilizing the patented power slot and ZipNut® locking mechanism, the ram may be extended under power when used in conjunction with the P-16 spreader tool, or extended manually and locked into place for shoring and stabilizing applications.

Fully extended length: 41-inches

Fully retracted length: 23-inches

Power stroke length: 12-inches

Secondary extender adjustable length: 6-inches. Slot width: 2.25-inches. Diameter: 4-inches. Weight with handle: 36 Lbs. Two rams can be assembled back-to-back or extensions added using the ram coupling.

Mechanical Ram that extends more than 25-inches to move and hold working loads. Utilizing the patented power slot and ZipNut® locking mechanism, the ram may be extended under power when used in conjunction with the P-16 spreader tool, or extended manually and locked into place for shoring and stabilizing applications.

Fully extended length: 27-inches

Fully retracted length: 16-inches

Power stroke length: 5-inches

Secondary extender adjustable length: 6-inches. Slot width: 2.25-inches. Diameter: 4-inches. Weight with handle: 27 Lbs. Two rams can be assembled back-to-back or extensions added using the ram coupling.

E-24 RAM EXTENSION – 2 Ft.
2 –foot Ram Extension for the Power Pushers
Weight with handle: 15-pounds

E-48 RAM EXTENSION – 4 Ft.
4 –foot Ram Extension for the Power Pushers
Weight with handle: 30-pounds

Connects two Power Pusher Rams back-to-back or is used to add ram extensions.

Weight: 6-pounds

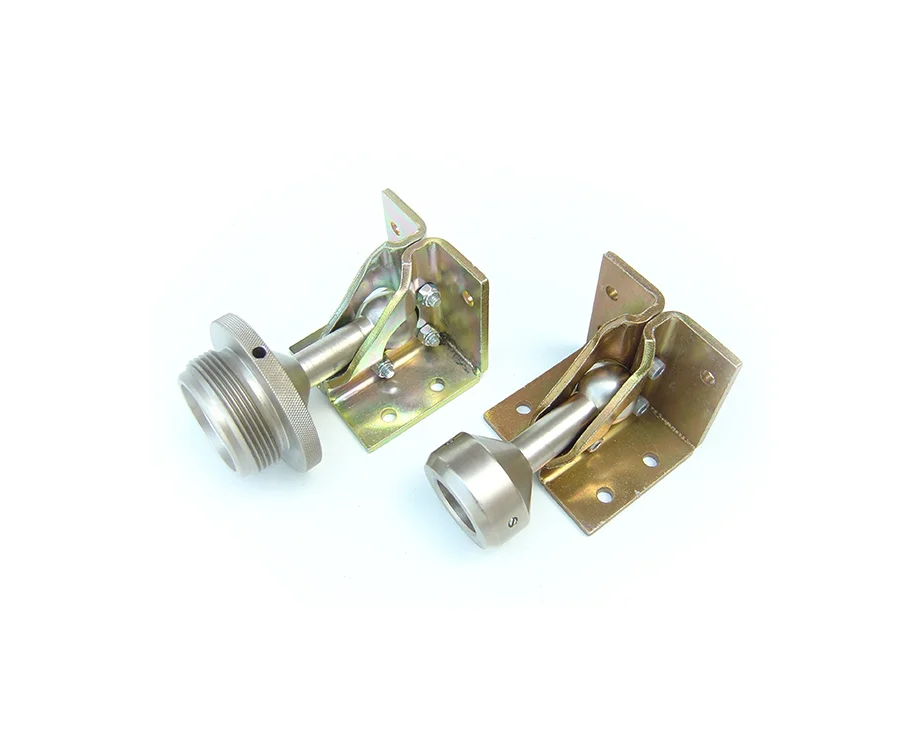

Connects to Power Pusher Rams or Extensions to allow angled operations.

Set Weight: 13-pounds
